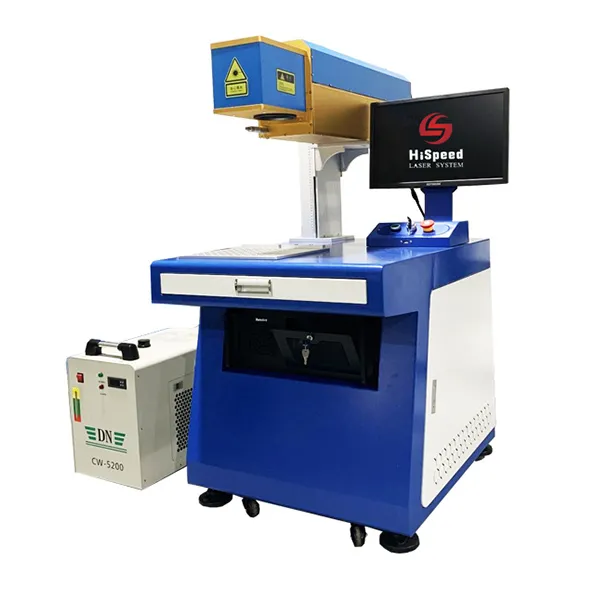

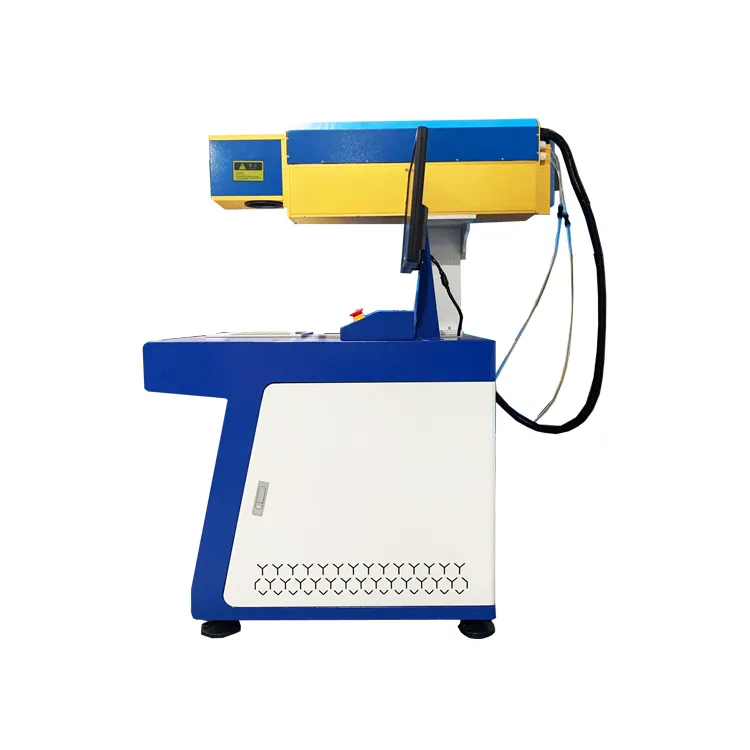

3-Axis CO₂ Laser Marker
  • 3-Axis CO₂ Laser Marker
  • 3-Axis CO₂ Laser Marker
  • 3-Axis CO₂ Laser Marker
  • 3-Axis CO₂ Laser Marker

    • 3-Axis CO₂ Laser Marker

    • Laser Power: 60W
    • Laser Wavelength: 10.64μm
    • Engraving Line Speed: ≤5000mm/s
    • Repeat Precision: ±0.01mm

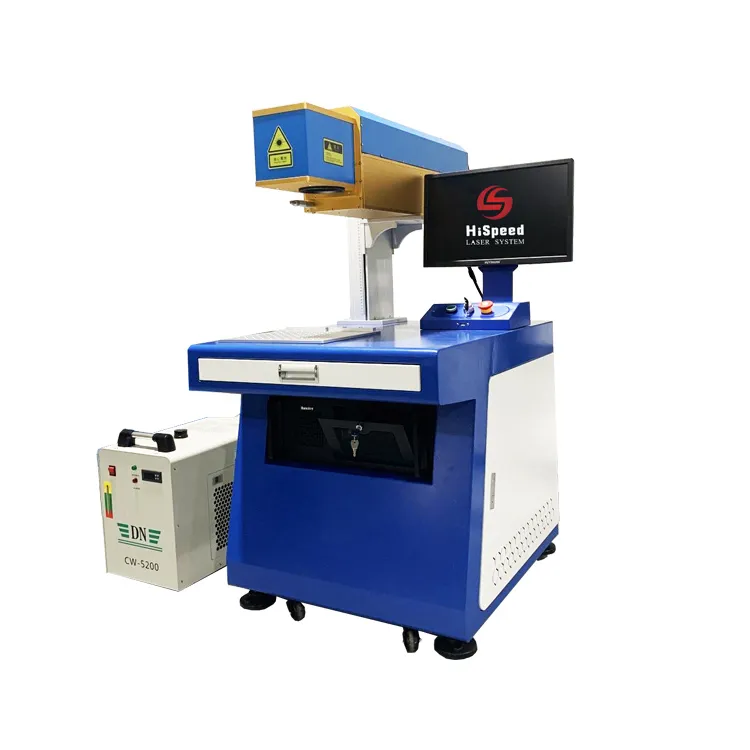

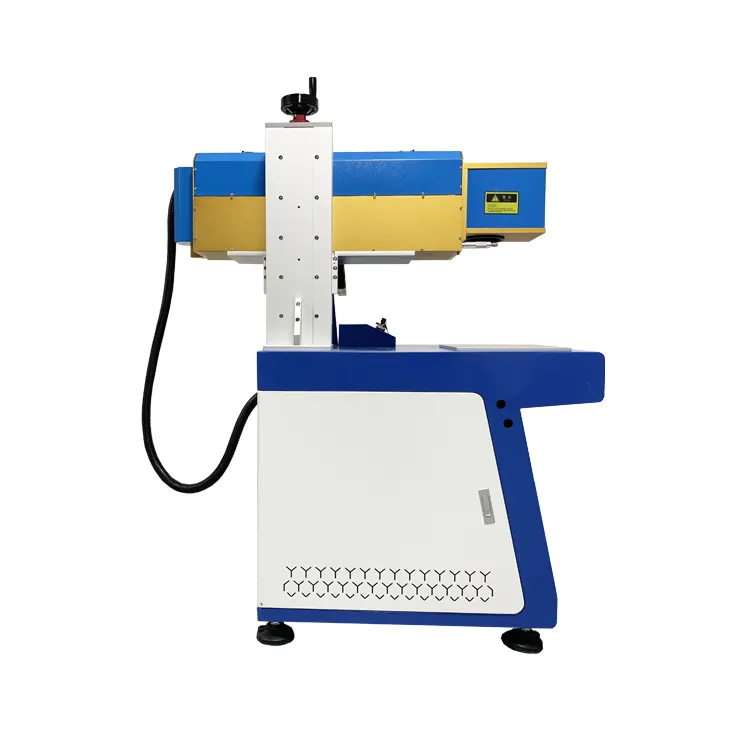

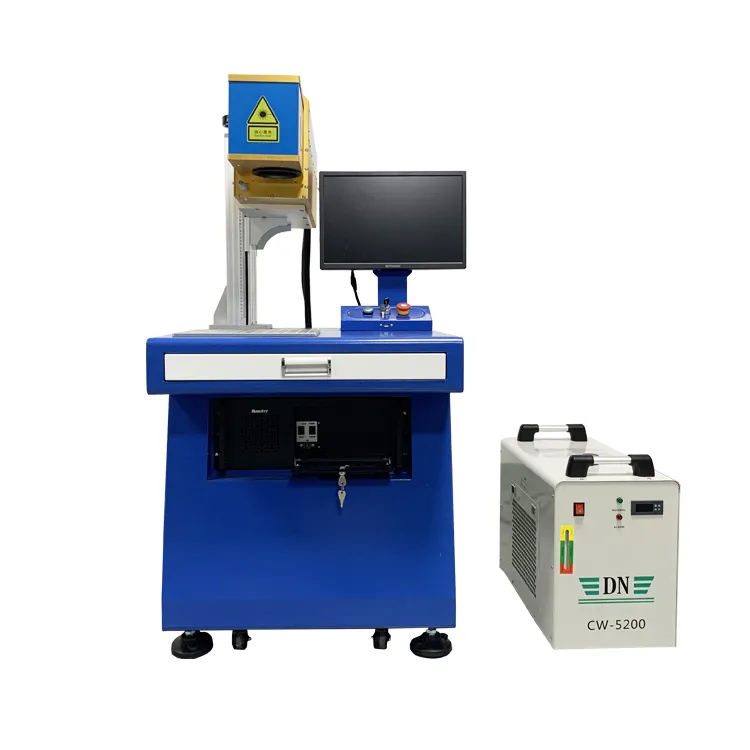

    CO2 laser markers take high quality metal laser tube as the laser source. By 3D fast-speed scanning mirrors swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by focus lens to form images and realize marking and graph processing.

    Request a Quote
    Technical Specifications
    Model LS-CO-60W
    Laser Power 60W
    The Lasers Marker CO2 Metal Laser Tube
    Laser Wavelength 10.64μm
    Engraving Line Speed ≤5000mm/s
    Repeat Precision ±0.01mm
    Minimum Line Width 0.1mm
    Minimum Character 0.4mm
    Marking The Maximum Height 300mm
    Power Supply 220V/50Hz or 110V/60Hz
    Engraving Depth ≤2mm/ ≤3mm/ ≤5mm/ ≤8mm
    Cooling System Bullt-in air cooling system&Water cooling
    Instructions User’s manual and Video instruction
    Power Consumption 500W/1000w
    Repeat Frequency 20-100KHz
    Standard Engraving Range Within 300*300mm
    Applications & Samples

    Applicable Materials: CO2 RF tube laser marker engraver is suitable for the majority of nonmetal materials such as leather, cloth, wood, bamboo, paper, organic materials, plastic, epoxy resin etc.

    Applicable Industries: The 30W CO₂ laser marker engraver is suitable for electronic components, medicines, food, drinking package, leather products, rag trade, woodworks, craftworks and package.
