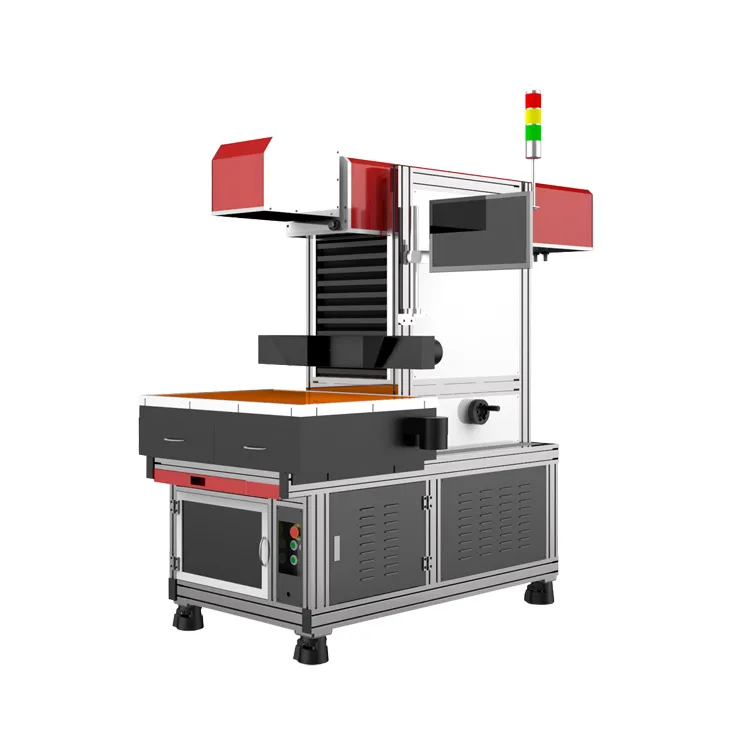

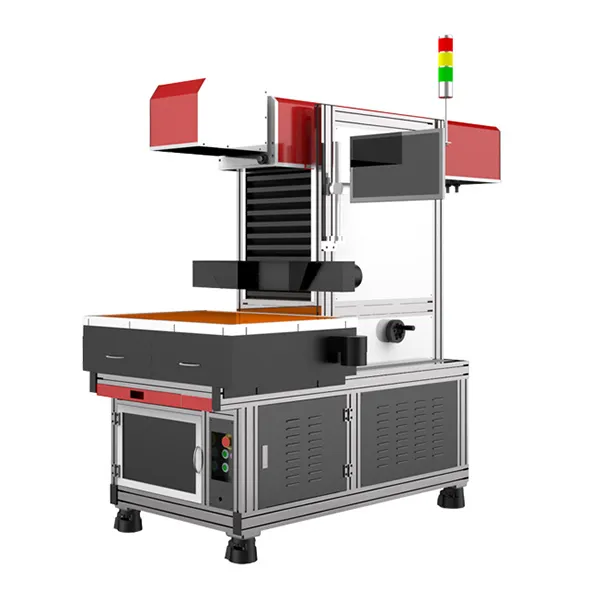

Large Size 3D Dynamic CO₂ Laser Marking Machine

Large Size 3D Dynamic CO₂ Laser Marking Machine
  • Large Size 3D Dynamic CO₂ Laser Marking Machine
  • Large Size 3D Dynamic CO₂ Laser Marking Machine
  • Large Size 3D Dynamic CO₂ Laser Marking Machine
    • Laser Power: 180W
    • Max.Marking Area: 800x800mm
    • Laser Wavelength : 10.64μm
    • Marking Speed: ≤7000mm/s

    This 3D dynamic auto-focusing laser marking machine features a US-imported metal laser source, delivering high power output and frequency, as well as an extended service life. Equipped with advanced dynamic scanning head and control card, the laser system leverages optimized algorithms to achieve exceptional marking and cutting speeds.

    The CO₂ laser marking machine is specifically engineered for large-format applications, it maintains a precision laser spot across a broad working area.

    Applications

    The 3D dynamic CO₂ laser marking machine is ideally suited for leather pattern carving, leather hollowing, invitation card marking, wood craft engraving, and laser marking of various other non-metallic materials.

    Request a Quote
    Technical Specifications
    Model LS-2000
    Max.Marking Area 800x800mm
    Laser power 180W
    Marking Speed ≤7000mm/s
    Power Consumption ≤ 5 kWh
    Worktable Aluminum Honeycomb Worktable
    Laser Source Coherent CO2 metal RF Laser Tube Made in USA
    Laser Wavelength 10.64μm
    Laser Frequency 20kHz~200kHz
    Scanner CTI America
    Repetition Precision 0.01mm
    Min.Letter Size 0.3mm
    System Support WIN 7/WIN 10
    Output Compatibility Auto CAD, Photoshop, CorelDRAW etc
    File Formats PLT, DXP, BMP, JPG, AI etc
    Software Character Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting
    Power Supply 110V~380V/50Hz~60Hz
    Cooling Way Circulation of Water Cooling
    Samples
    Large Size 3D Dynamic CO₂ Laser Marking Machine
    Large Size 3D Dynamic CO₂ Laser Marking Machine
    Large Size 3D Dynamic CO₂ Laser Marking Machine
    Large Size 3D Dynamic CO₂ Laser Marking Machine
    Card Engraving Machine Structure

    CO₂ Laser hollow Machine adopts imported laser tube and high speed galvo scanner, Hispeed Laser linear 3D Dynamic Focusing System, device control system, self-developed Control software and the high precision thermostatic water cooling system. The host machine is as follow:

    Machine’s Control section is focused on the Electrical main control section. The whole machine’s optical components are focused on the optical main beam and inside the square head through the complete optical design. The integrated water chiller provides a circulation water cooling system for the machine during working. CO2 Dynamic Laser Marking Machine mainly includes the following parts:

    • Optical System
    • Water Cooling System
    • Electrical Control System
    • IPC&Marking Motion Card
    • Laser Marking Control Software
    • Exhausting System
