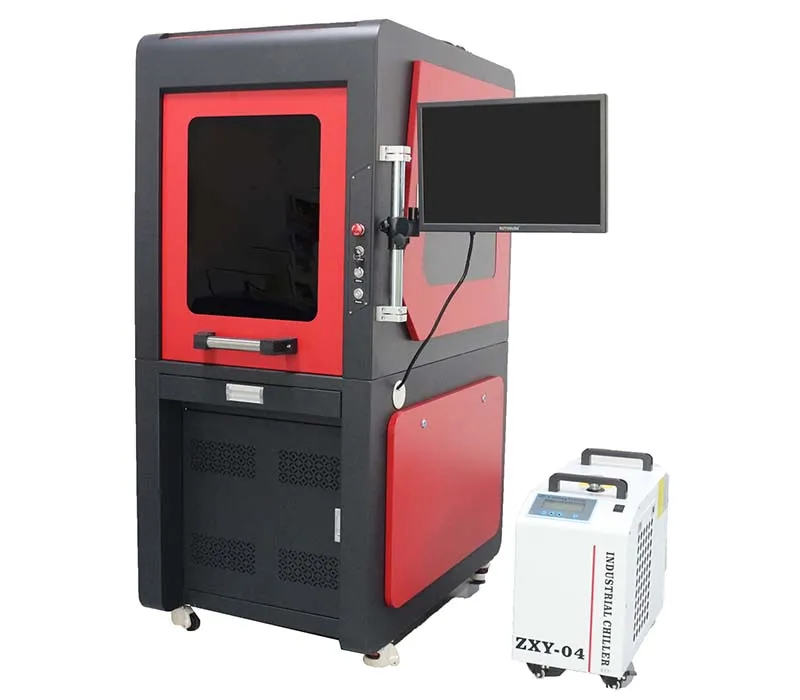

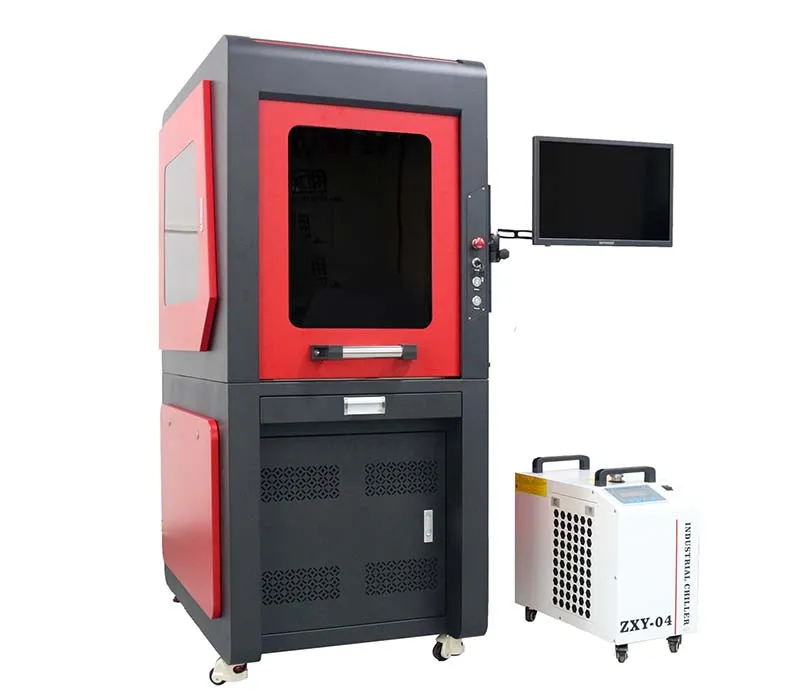

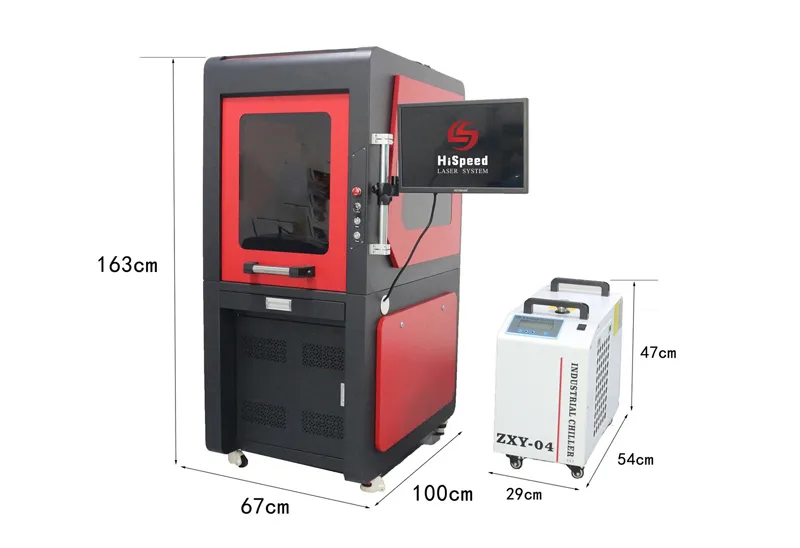

The full enclosed UV laser marking machine features an integrated metal frame and transparent observation window design, effectively isolating dust, splashes, and external light interference. This protects the optical system's cleanliness and reduces equipment failure rates. Equipped with a door interlock safety switch, opening the cover automatically cuts off the laser output, complying with Class 1 laser safety standards and preventing accidental operator contact. It supports multi-mode mixed marking for text, vector graphics, 1D/2D barcodes, dynamic serial numbers, and more.
Request a Quote
Applications
UV laser marking machines leverage cold processing, high precision, and multi-material adaptability as core competencies, excelling particularly in handling heat-sensitive, highly reflective, or materials requiring ultra-fine processing. They can achieve sub-micron level non-thermal damage engraving on surfaces including metal coatings, polymers: (e.g., ABS, PVC, HDPE, and other plastics), glass, ceramics and more.

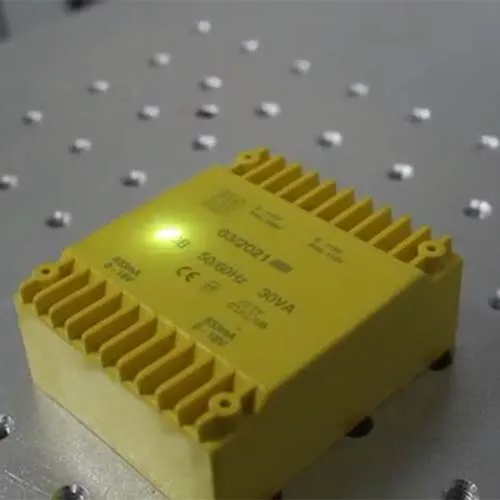

Plastic laser marking
Aluminum laser engraving

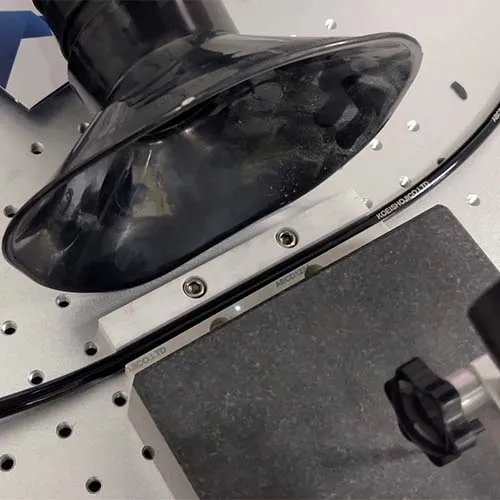

PU hose laser marking

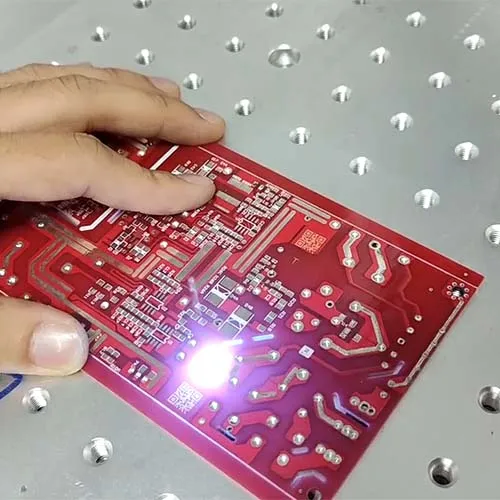

PCB laser marking

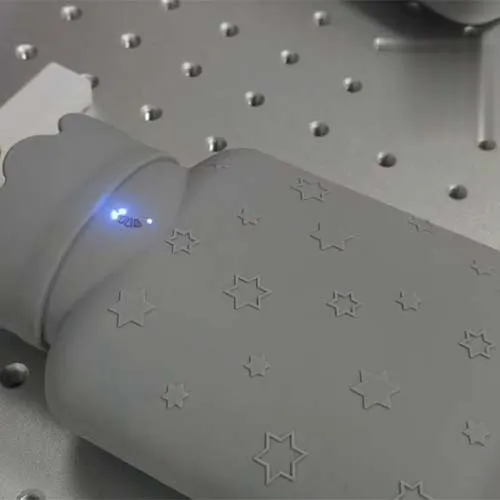

Silicone hot water bag laser marking

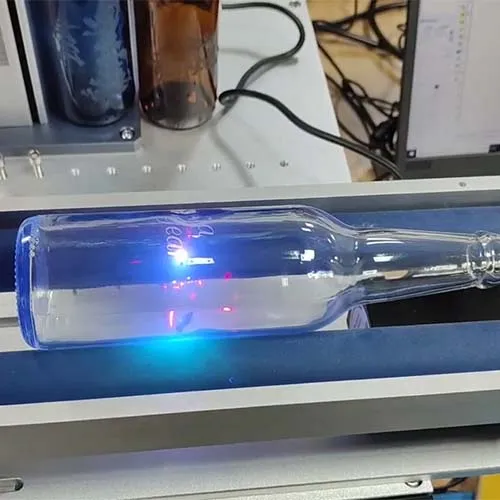

Glass bottle laser marking

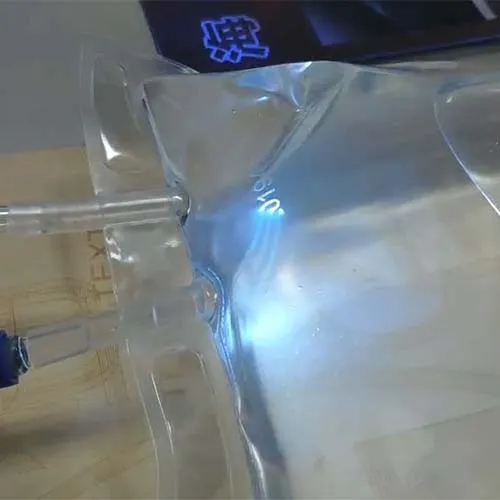

PP IV bag laser marking
Rose pattern laser engraving
Silicone cup sleeve laser marking
Plastic animal ear tag laser marking
Plastic bottle cap laser marking
Glass wine bottle laser marking
Glass goblet laser marking
Crystal laser marking
Technical Data
Configuration
Inquiry
Technical Data
Laser power 3W, 5W, 10W
Laser type UV laser
Laser wavelength 355nm
Marking range ≤300×300mm
Beam quality M²<1.2~1.5
Max. line speed 7000mm/s
Min. character size 0.05mm
Min. line width 0.01mm
Cooling method water cooling
Power supply 220V/50Hz, 110V/60Hz
Operating temperature 10℃~35℃ (Operating outside this range may affect equipment performance and lifespan)

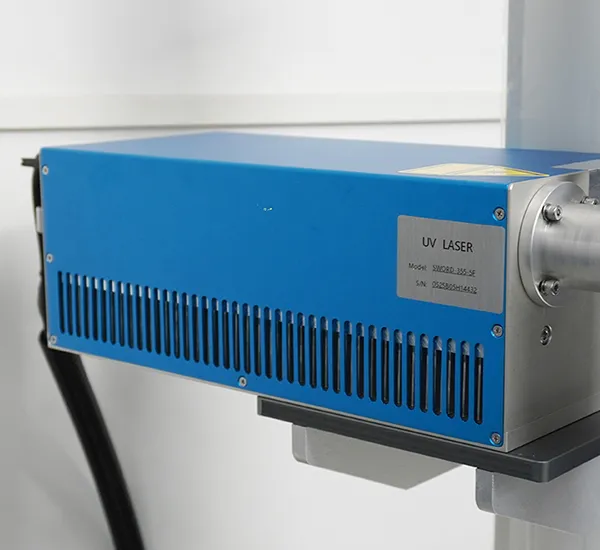

Laser source
We provide renowned domestic and international brand laser sources for our equipment, such as DXT, GL, and Optowave. These sources offer high pump conversion efficiency, low power consumption, and excellent beam quality. Utilizing third-order intracavity frequency doubling technology, the wavelength is shorter than that of fiber (1064nm) and CO₂ (10.64μm) lasers, resulting in higher photon energy. This allows for direct breaking of material molecular chains rather than heating, achieving a "photo-etching" effect with a minimal heat-affected zone (<1μm), thereby preventing material deformation or scorching.
Galvo scanner
Features a high scanning speed of 7000mm/s, high stability, and is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.

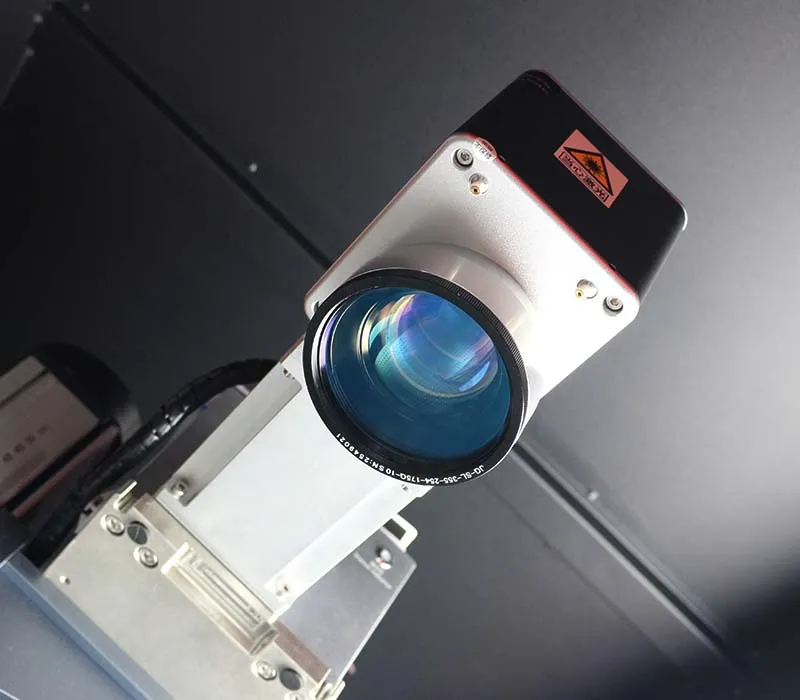

F-theta lens
Equipped with a 355nm wavelength F-theta lens, primarily used for UV laser marking machines. Due to its shorter wavelength, it is suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.

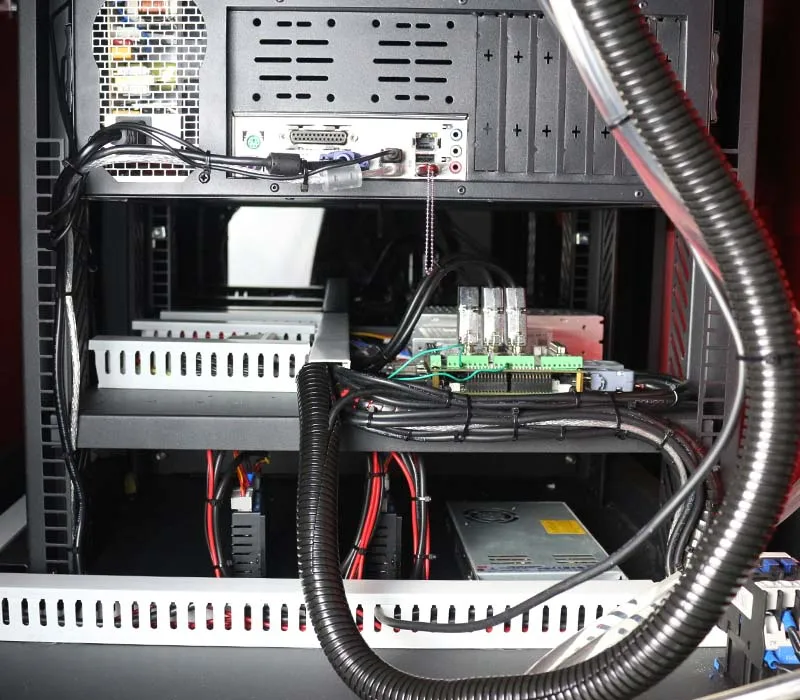

Control card
Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.
Computer
Features an industrial computer with a Windows 10 system and a 19-inch LCD display to ensure smoother operation of the entire laser equipment.
Column
Features electric lifting and lowering, adapting to marking workpieces of various heights without manual adjustment, significantly improving overall work efficiency.
Laser safety warning labels
Plays a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.
Does UV marking equipment support marking on common plastics like ABS, PE, and PVC?
UV lasers offer excellent marking effects on plastics such as ABS, PE, and PVC, especially when high precision and no thermal damage are required.
What types of marking can the UV marking system achieve on PCB boards?
It can achieve various types of marking including QR codes/barcodes, serial numbers, LOGOs, component identification, production dates, and more.
What is the lifespan of a UV marking machine?
Theoretically, the lifespan of a UV laser is generally between 15,000 and 25,000 hours (this specifically depends on the brand, usage frequency, environment, and other factors).
Standard Configuration
Optional Configuration
Accessory List
Fume Extractor
F-theta lens
Cylindrical rotary clamp fixture
Roller rotary axis
