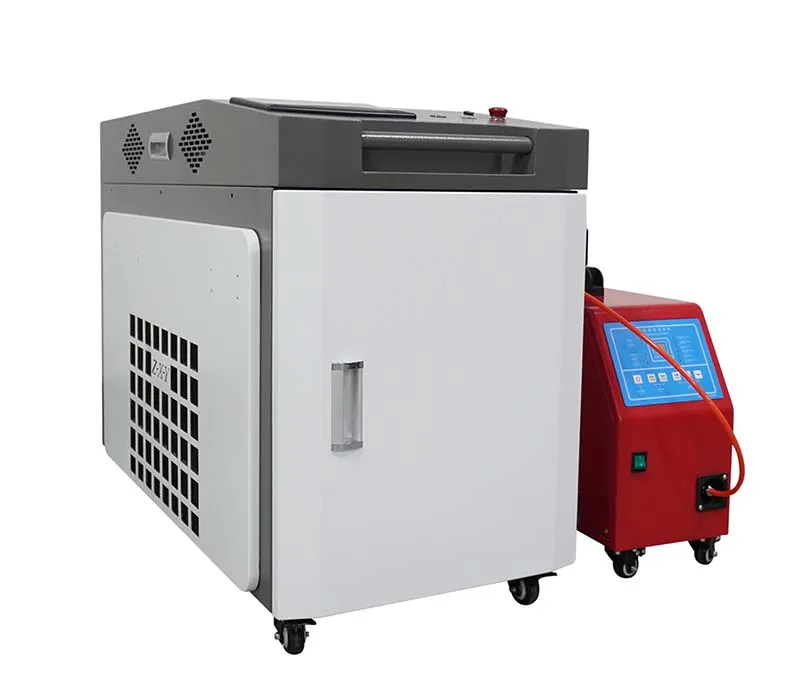

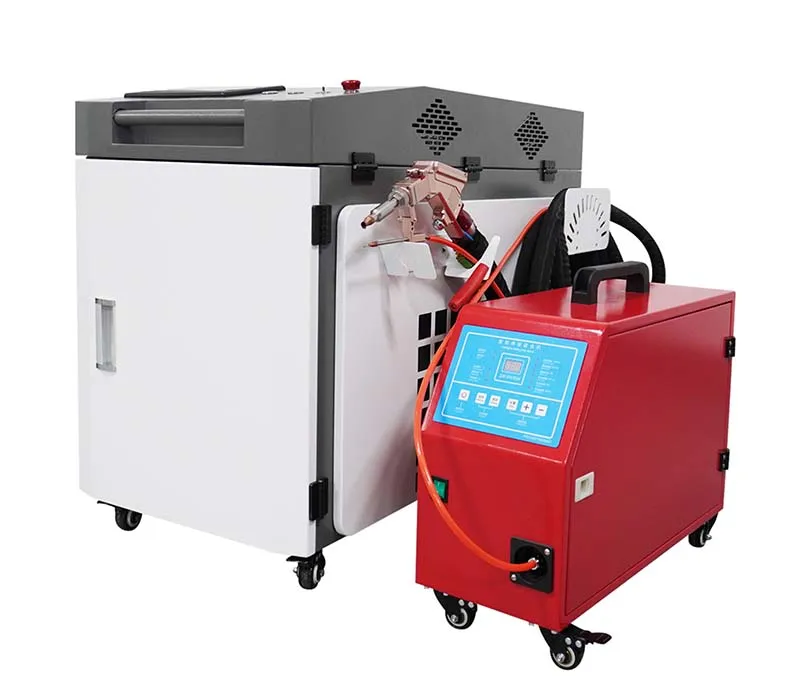

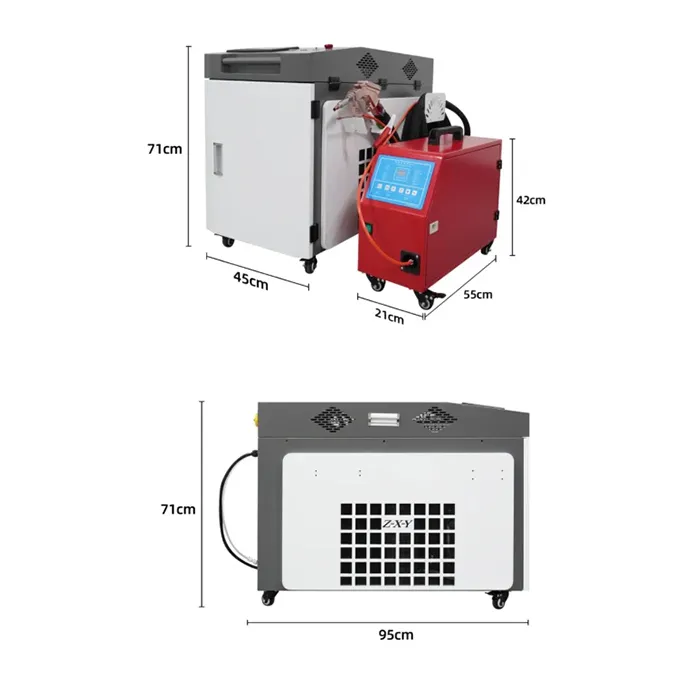

The handheld laser welding machine redefines traditional welding processes with its core advantages of high precision, lightweight design, and multi-scenario adaptability. This equipment utilizes fiber laser technology, with power covering 1500W-6000W, a spot diameter of ≤0.2mm, and a heat-affected zone (HAZ) of <0.5mm. The weld strength is comparable to the base material, and the surface is smooth with no oxidation. Its intelligent water-cooling system operates stably in environments ranging from -10℃ to 50℃, making it suitable for complex scenarios such as workshops, construction sites, and outdoors. It is particularly ideal for demanding fields like automotive repair, metal processing, and shipbuilding. Coupled with an ergonomic design, it offers flexible and labor-saving operation, increasing daily welding efficiency by more than 3 times.
Request a Quote

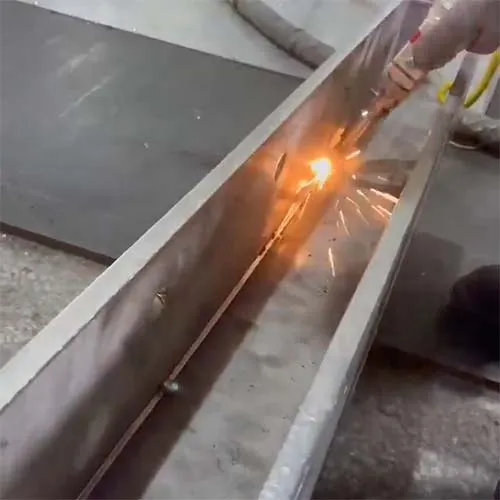

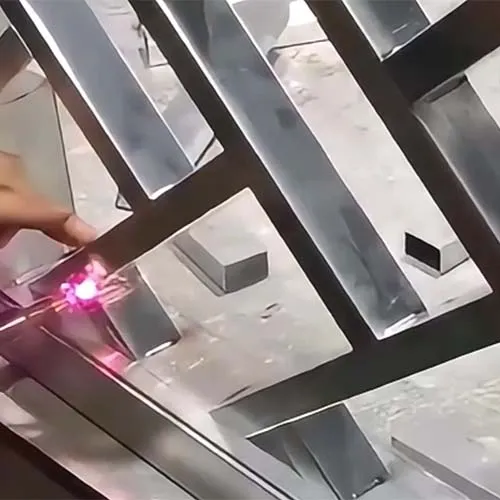

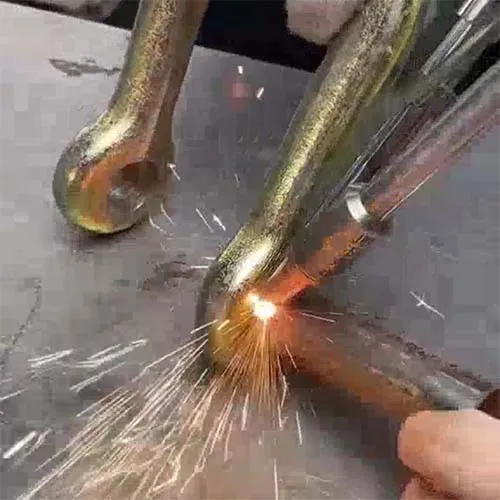

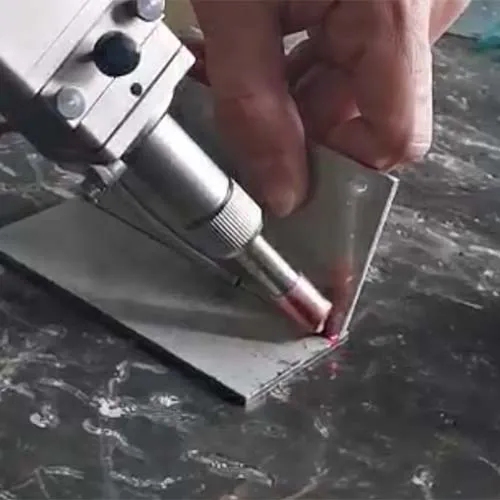

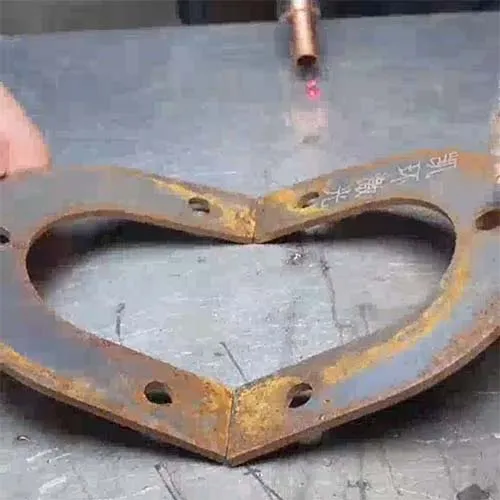

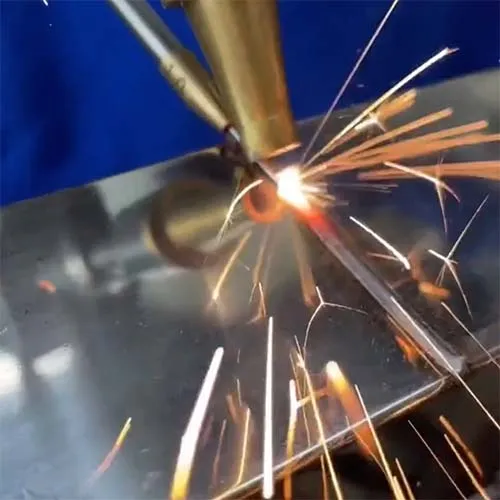

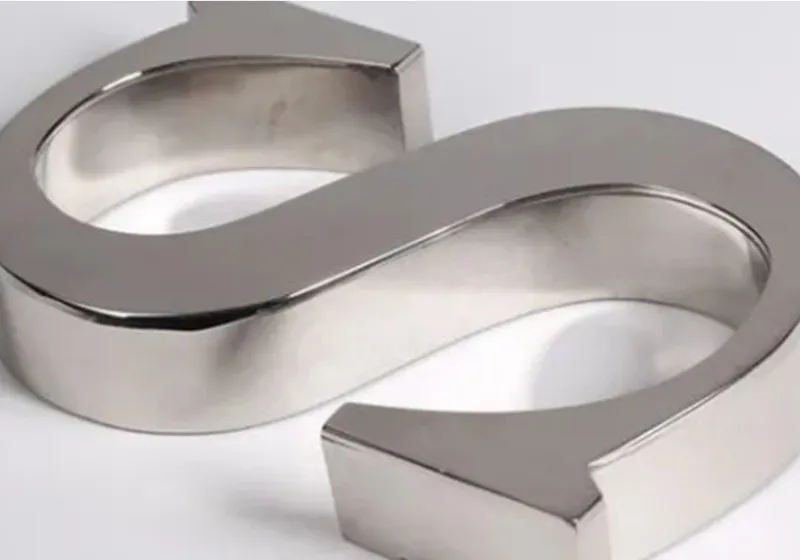

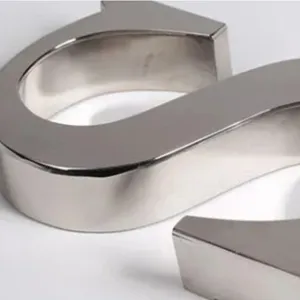

Applications

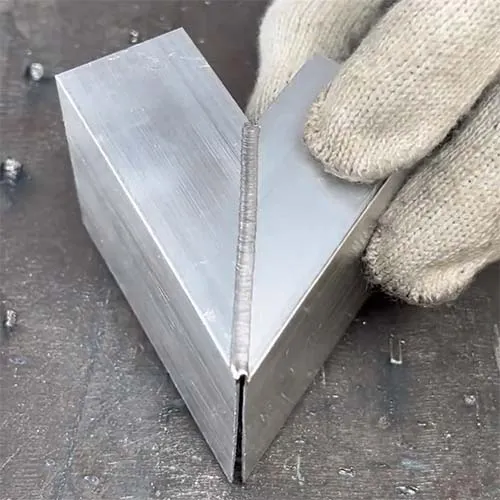

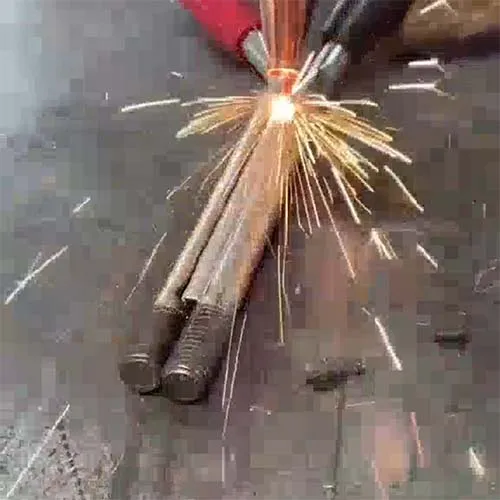

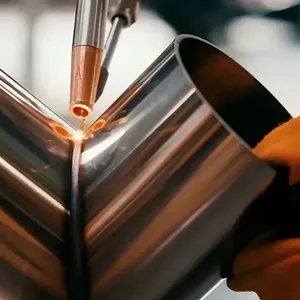

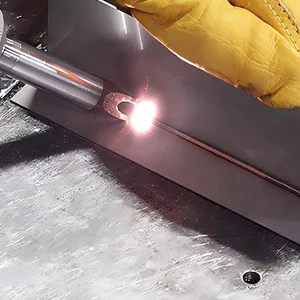

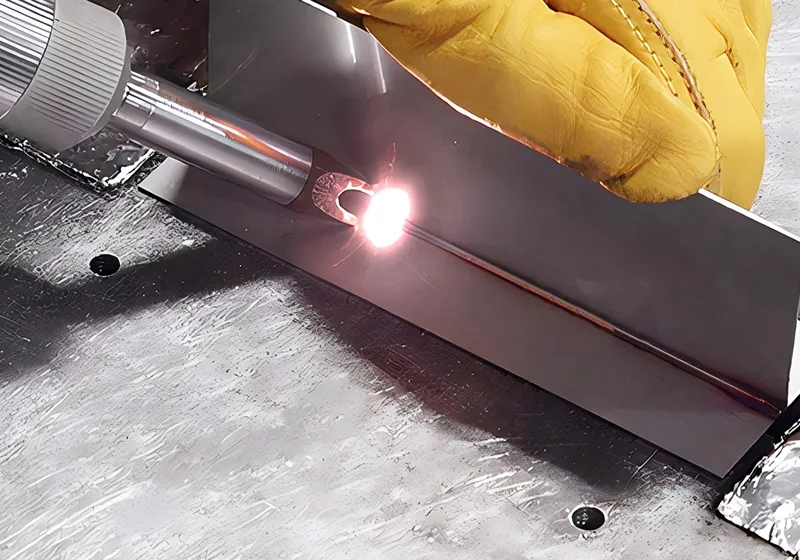

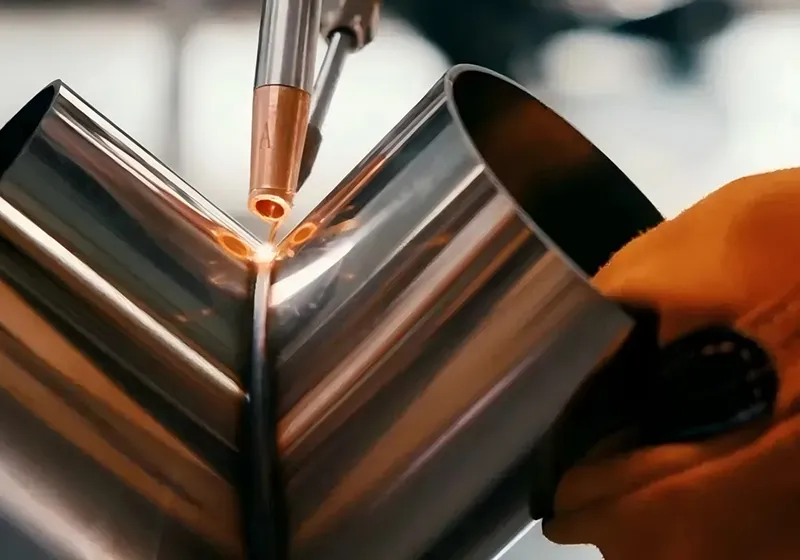

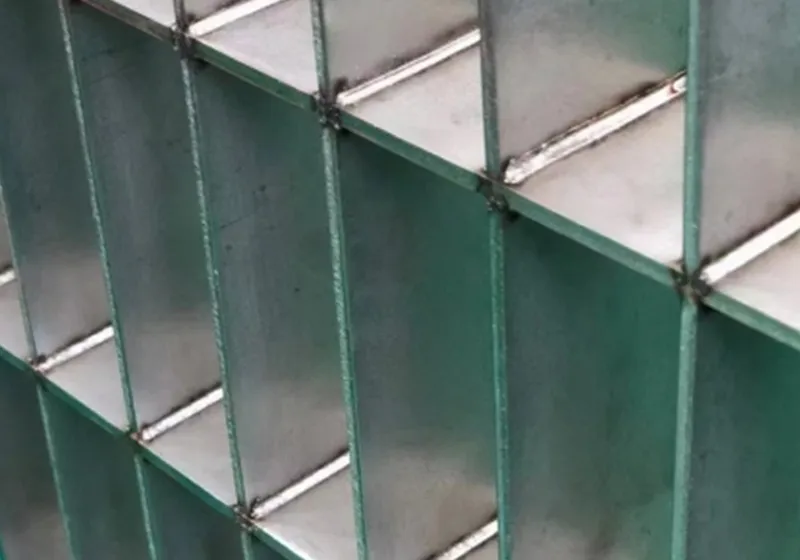

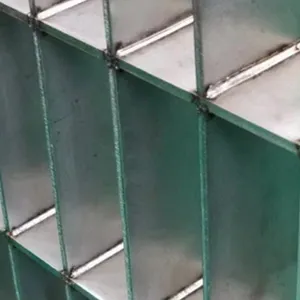

Stainless steel, aluminum alloy, copper, brass, galvanized sheet, nickel-plated parts, and dissimilar metals such as copper-aluminum composites, steel-aluminum hybrid structures, etc.

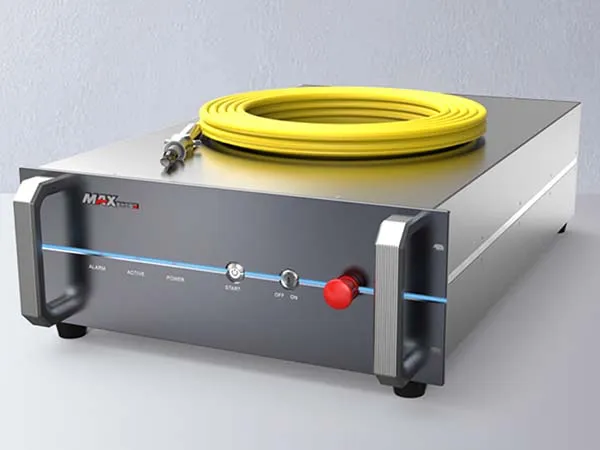

Laser source
We provide renowned domestic and international brand laser sources for our equipment, such as Raycus, JPT, MAX, SUPER, and IPG; these feature high pump conversion efficiency, low power consumption, and excellent beam quality.

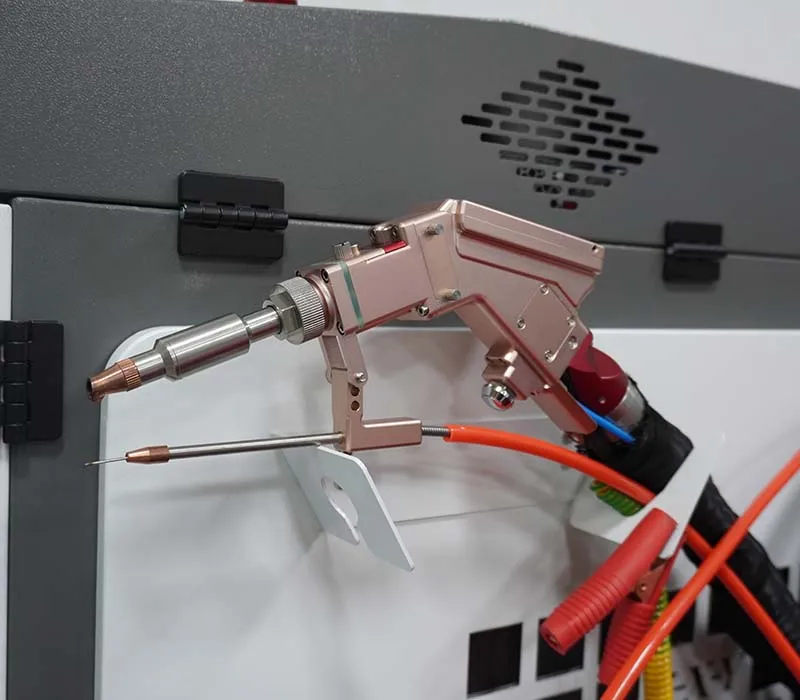

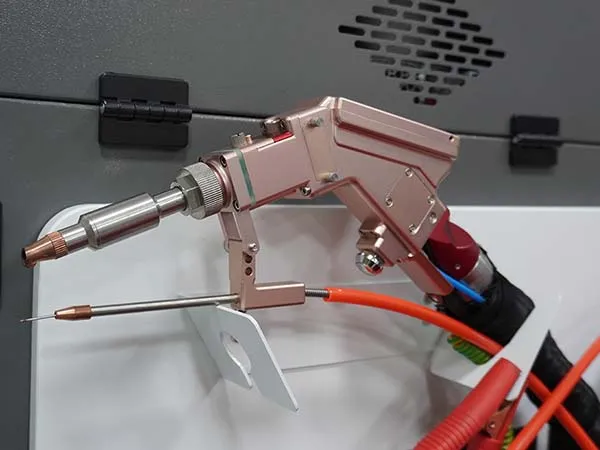

QBH handheld welding head
Supports seamless switching between welding, cleaning, and cutting modes. The gun head can rotate 360°, and coupled with replaceable gas nozzles (e.g., 30°, 60°, 90° nozzles), it easily handles complex positions like deep cavities and corners, achieving precise welding at any angle.

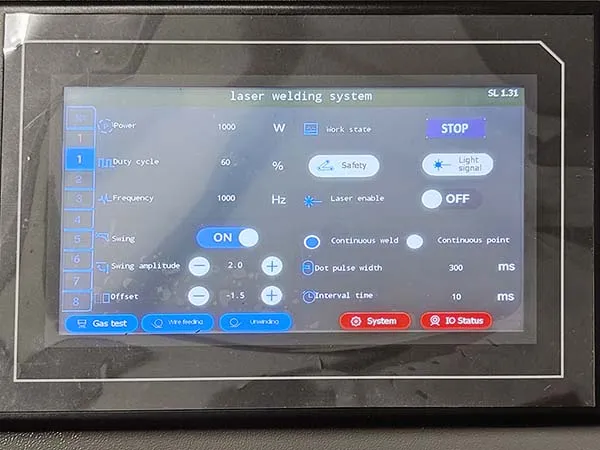

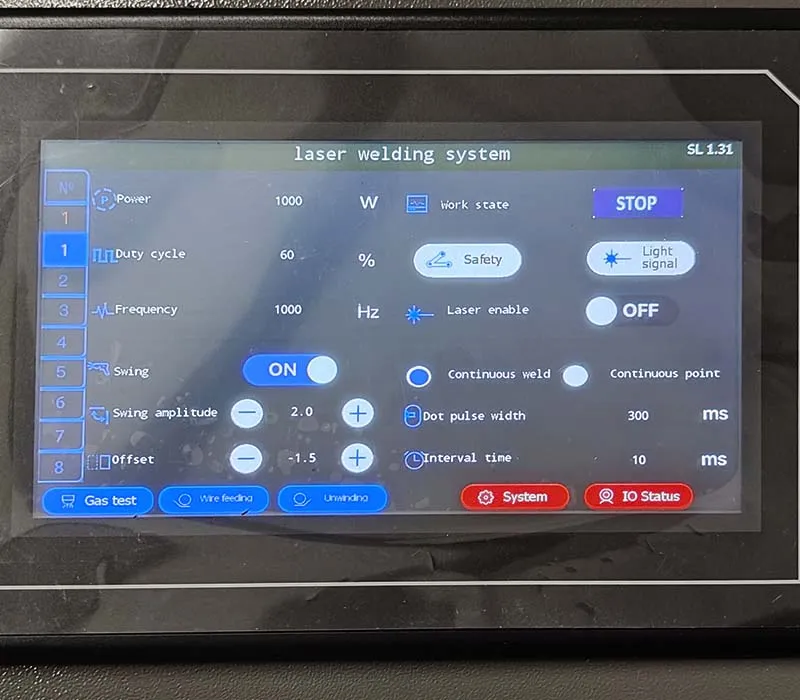

Touch screen
Provides a high-resolution display interface, supporting real-time parameter monitoring and operation feedback, ensuring precise control over key parameters such as laser power, frequency, and energy; built-in multi-language options (e.g., Chinese, English, etc.) adapt to global user needs and lower the operating threshold.

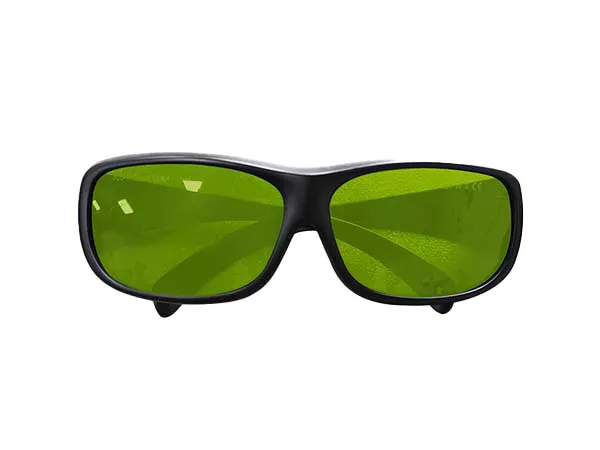

Safety goggles
Specifically designed for fiber laser wavelengths (e.g., 1064nm, 1070-1100nm), with an Optical Density (OD) reaching OD4+ to OD7+, effectively attenuating laser energy to below safe thresholds. They balance clear vision with safety protection and reduce operational fatigue.

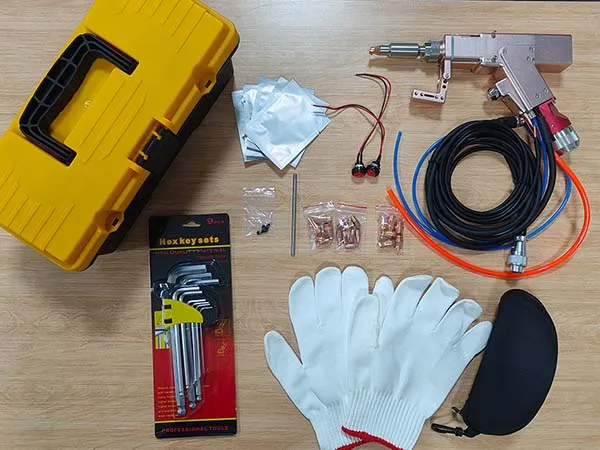

Tool box
A tool set is provided free with the equipment, with hex key tools, copper nozzles, protective lenses, etc., separately packaged to prevent transport wear and tear, and for clear visibility and improved operational efficiency.

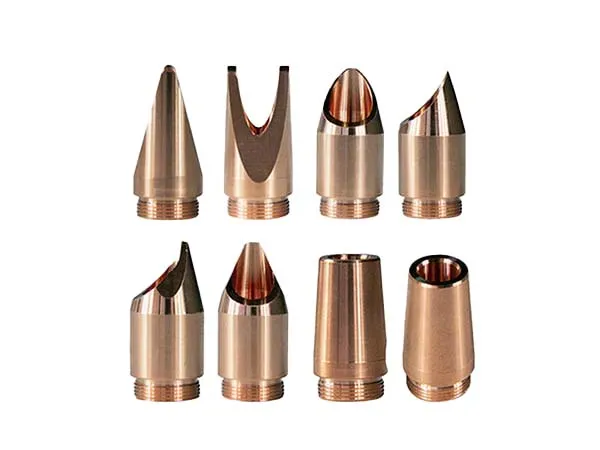

Copper nozzles
Made from high-purity red copper or tungsten-copper alloy, with electrical conductivity up to 98% IACS and a melting point of 1083℃. They can withstand high-temperature oxidation during continuous welding, extending their service life by over 30% compared to ordinary alloy nozzles.

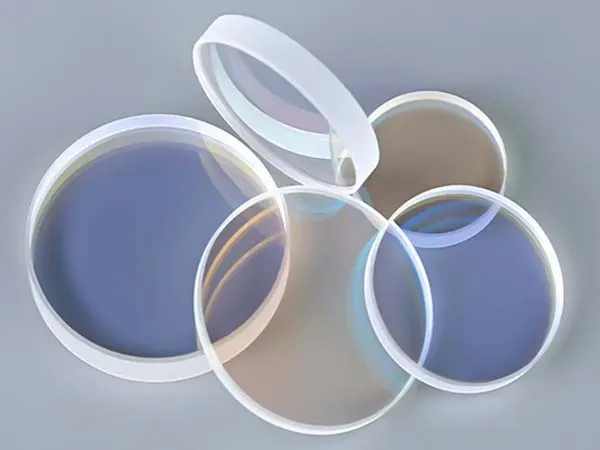

Protective lenses
Made from JGS1 quartz or ZnSe zinc selenide, with light transmittance ≥99.8% and laser damage threshold >15J/cm². They are suitable for high-power equipment above 2000W, reducing energy loss. Double-sided anti-reflective coating reduces reflectivity to below 0.2%, preventing secondary light pollution.
Fume Extractor

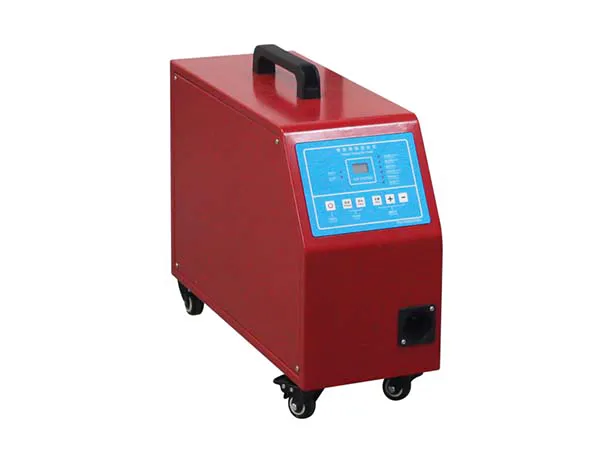

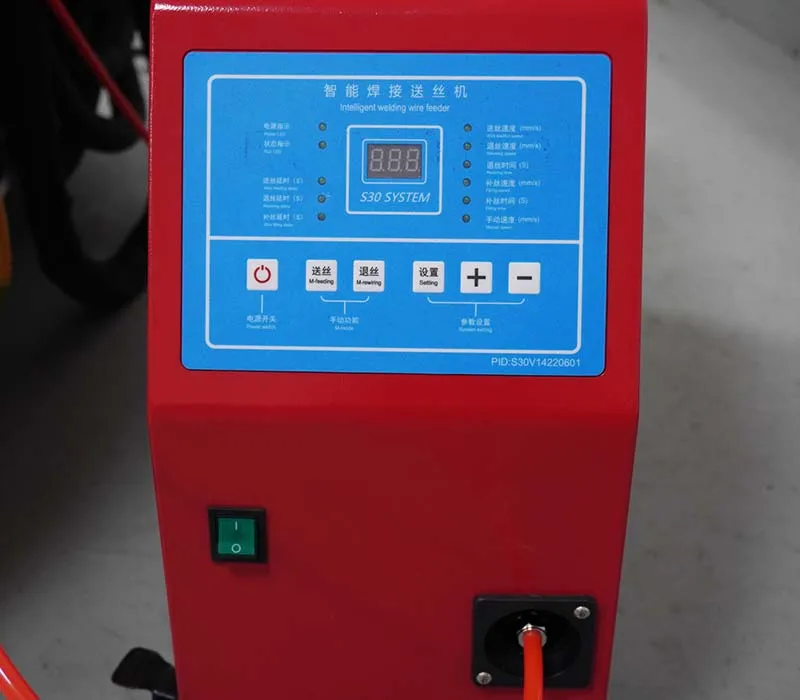

Wire feeder
Supports wire diameters from 0.8-1.6mm with stepless speed adjustment from 0-20m/min and an error of ±1%. It is compatible with various welding wire materials such as aluminum, stainless steel, and copper.
Standard Configuration
Optional Configuration
Consumables / Wearable Parts List
